Application

The "Taleflex" cables are suitable for power and lighting circuits and building wiring suitable for use in semi flush exposed conduits, embedded conduits and in closed installation ducts.

Standard

BS EN 50525-2-31. SABS 1507-2, SS 358 Part-3.

Technical Data

• Voltage Rating: Uo / U – 450 / 750V

• Harmonised Designation: 1.5 mm² to 630 mm² stranded class 2 – H07V-R

• Temperature Range: -15°C to 70°C

• Minimum Bending Radius:

• Upto 10 mm²: 3 X Overall Diameter.

• 16 & 25 mm²: 4 X Overall Diameter.

• Above 25 mm²: 5 X Overall Diameter.

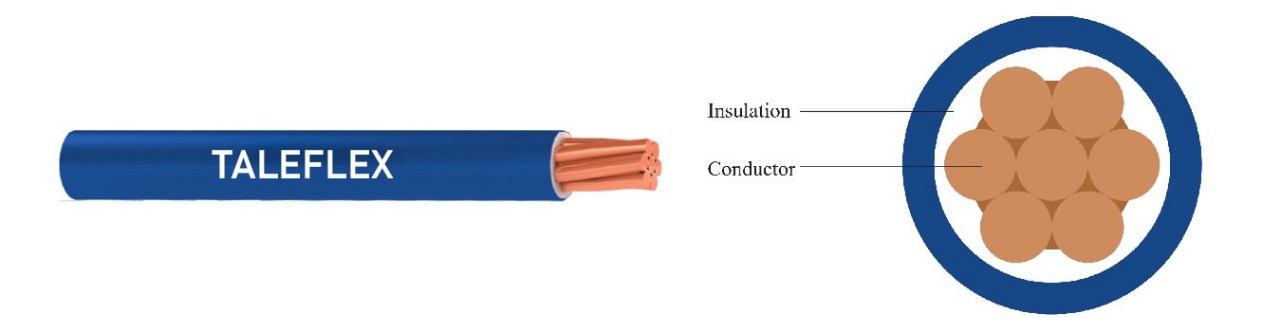

Cable Construction

• Conductor: Plain annealed copper conductor 1.5 mm² to 630 mm² stranded class 2 complying with BS EN 60228, HD 383, IEC 60228

• Insulation: PVC (Polyvinyl Chloride) compound type TI 1 complying with EN 50363-3, HD 21.1, IEC 60227-1, SABS 1411-2

Cable Design Parameters

Kindly complete the part numbers for these cables by adding the suffix (in place of ‘xx’) for the colour required: 02 – black, 03 – red, 04 – blue, 05 – yellow, 06 – green / yellow, 07 – white, 08 – violet, 09 – brown, 10 – orange, 11 – pink, 12 – grey.

• For current ratings refer table no. 10-1 & voltage drop refer table no. 10-2.

*Construction Product Regulation (CPR) is a regulation issued by the European Union with the purpose of regulating the limits of fire resistance and dangerous substances in the materials used in construction. This regulation applies to all products intended to be incorporated, permanently, in construction. Above link provides the DOP (declaration of performance) for the CPR compliance for the product.
