India’s 1st REACH and RoHS Compliant Cable | Heat Resistant & Flame Retardant Cable

Application

Suitable for modern infrastructure requiring flexible wiring in homes, offices, and commercial spaces, where enhanced bending radius, quick installations, and fire-safe performance are critical.

Technical Data

• Approvals: IS 649 marked, FIA/TAC

• Voltage Grade: Up to and including 1100V

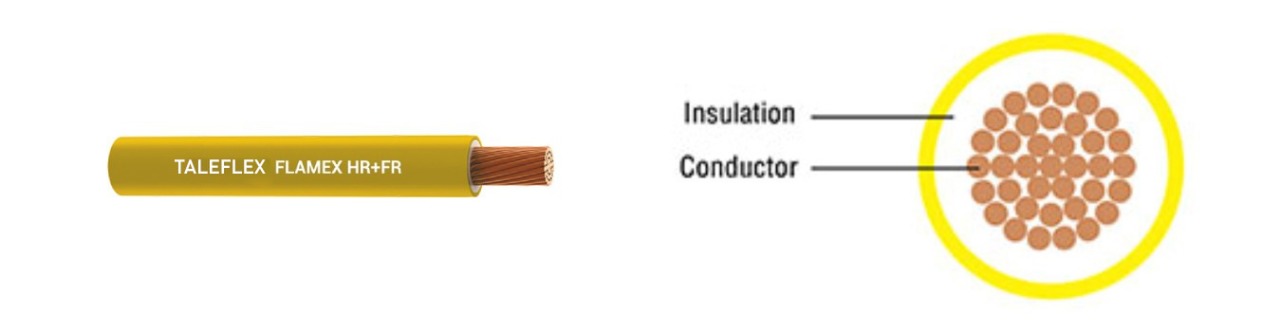

• Conductor: Thin strands of electrolytic copper are multi-drawn for uniformity of resistance, dimension and frexibility.

• Insulation: High-grade Heat Resistant and Flame Retardant (HR FR) PVC insulation is used. Specially engineered to withstand elevated temperatures while effectively retarding flame propagation, ensuring enhanced safety and long-term performance.

• Insulation Conformity: IS 5831 Type C – HR 85˚C + FR

• Colours: Red, yellow, blue, black, green, grey & white

• Marking: The cables are printed with the marking ‘FLAMEX HR+FR’

• Packing: 90 meter coils packed in protective cartons.

Cable Design Parameters

Kindly complete the part numbers for these cables by adding the suffix (in place of ‘xx’) for the colour required 01 – Green, 02 – Black, 03 – Red, 04 – Blue, 05 – Yellow, 06 – Grey, 07 – White

• * As per IS 3961 (Part V)

• ** As per conductor Class 5 of IS 8130

Properties

*Construction Product Regulation (CPR) is a regulation issued by the European Union with the purpose of regulating the limits of fire resistance and dangerous substances in the materials used in construction. This regulation applies to all products intended to be incorporated, permanently, in construction. Above link provides the DOP (declaration of performance) for the CPR compliance for the product.
