FR (Flame Retardant) insulation 70°C | Hazardous substance free | Does not propagate flame & fire.

Application

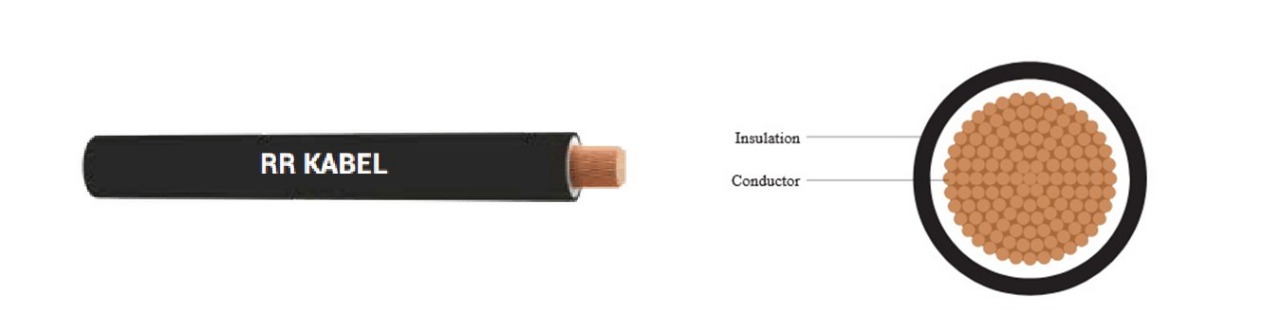

Flexible single core cable with Flame Retardant PVC insulation. This cable can be used in panels, cabinets, machines and internal wirings with switchgears, relays, controllers, equipments, controls units, etc.

Technical Data

• Approvals : IS 694 marked, FIA/TAC

• Cable Code : Y (FR)

• Voltage Grade : Up to and including 1100V

• Conductor : Flexible electrolytic annealed plain copper, class 5, IS 8130

• Insulation : FR (Flame Retardant) PVC, IS 5831

• Packing : 200 mtr. In polybag packing up to 4 sq. mm and shrink wrap packing for 6 Sq. mm and above. Product also available in 100 meter packing.

Properties

• Temperature range: -15°C to +70°C

• Max. short circuit temperature rating: 160°C

• Self-extinguishing and flame retardant according to IS 10810 P – 61

• Free from 240+ hazardous substance
