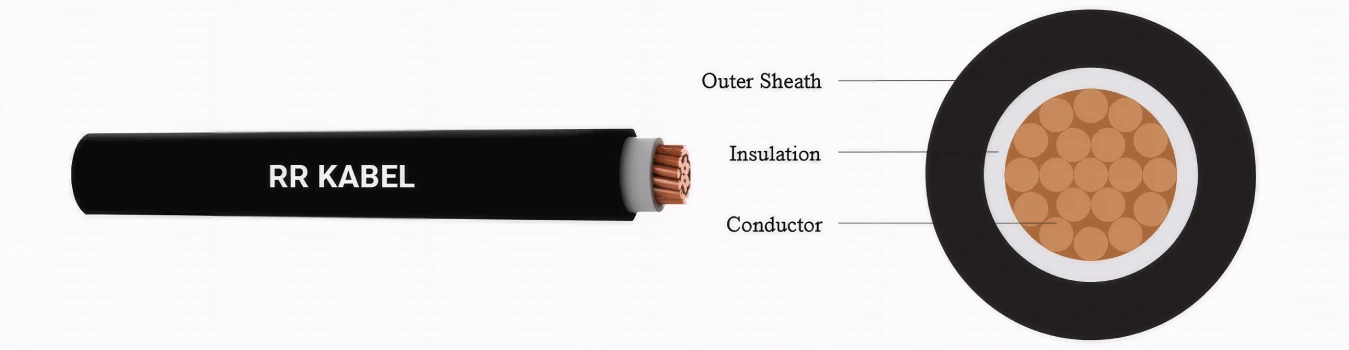

Cable Construction

• 1.1 kV (A.C) & 1.5 kV (D.C ) to Earth

• 1 cores AL / CU conductor, PVC insulated, unarmoured cables as per IS 1554 Part – 1.

• Conductor : AL up to 10 Sq. mm conductor are solid Cl.1 as per IS 8130. And above 10 Sq. mm conductor are stranded round or compact Cl. 2 as per IS 8130

  In CU 4 & 6 Sq. mm conductor are solid Cl.1 or stranded Cl. 2 as per IS 8130. 10 Sq. mm & above stranded round or stranded compact Cl. 2 as per IS 8130

• Insulation : PVC Type – A, as per IS 5831. (Option : HR PVC Type – C, as per IS 5831)

• Core Color : Red or yellow or blue or black or natural

• Outer Sheath : PVC Type ST-1 as per IS 5831. (Option : PVC Type – ST 2 as per IS 5831 / FR Type / FRLS Type )

• Cable Color : Black (Options : Any other color as per requirement)

Cable Design Parameters

• Conductor Type (Aluminium or Copper) and class of conductor (Cl. 1 or 2).

• Insulation Type – PVC Type A / C.

• Sheath Type – PVC Type ST-1 / FR / FRLS; PVC Type ST-2 / FR / FRLS.

• Colour from above technical details.
