SUPEREX GREEN HR + FR || TALWAR AGENCIES

Application

Superex Green HR+FR is designed for fixed wiring installations where enhanced mechanical strength, thermal endurance, and fire safety are critical. With Heat Resistant and Flame Retardant insulation, it ensures safe and reliable performance even under high temperatures. Its special conductor construction makes it ideal for fixed wiring in modern residential and commercial spaces. The distinctive green identity reflects a conscious step toward safer, stronger, and more responsible wiring solutions.

Technical Data

The Central Electricity Authority (CEA) Regulation 2023 has made it mandatory to use Halogen Free Flame Retardant cables in public infrastructures (airports, hospitals, hotels) irrespective of height.

Approvals: IS 694 marked, FIA/TAC
Voltage Grade: Up to and including 1100V

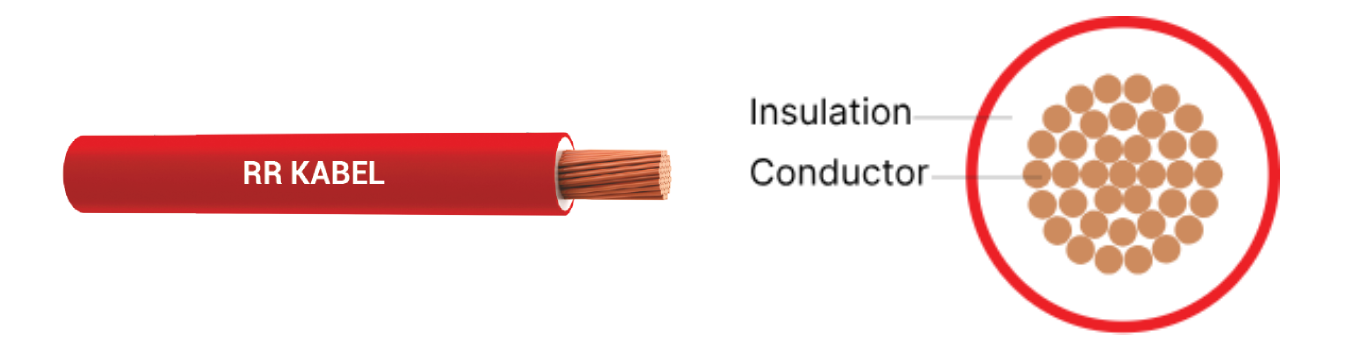

Conductor: Thin strands of electrolytic copper are multi-drawn for uniformity of resistance, dimension and flexibility.
Insulation: High-grade Heat Resistant and Flame Retardant (HR FR) PVC insulation is used. Specially engineered to withstand elevated temperatures while effectively retarding flame propagation, ensuring enhanced safety and long-term performance.
Insulation Conformity: IS 5831, Type C – HR 85˚C + FR
Colours: Red, yellow, blue, black, green, grey & white
Marking: The cables are printed with marking of ‘SUPEREX GREEN’
Packing: 90 mtr. coil is packed in protective cartons.

Cable Design Parameters

Kindly complete the part numbers for these cables by adding the suffix (in place of ‘xx’) for the colour required: 01 – green, 02 – black, 03 – red, 04 – blue, 05 – yellow, 06 – grey, 07 – white.

As per IS 3961 (Part V)
As per conductor Class 2 of IS 8130
As per conductor Class 5 of IS 8130

Properties

*Construction Product Regulation (CPR) is a regulation issued by the European Union with the purpose of regulating the limits of fire resistance and dangerous substances in the materials used in construction. This regulation applies to all products intended to be incorporated, permanently, in construction. Above link provides the DOP (declaration of performance) for the CPR compliance for the product.
