Application

High quality co-axial for cable TV network for notch free attenuation values over wide range of frequencies. The special jacketing offers increased life even in rugged conditions.

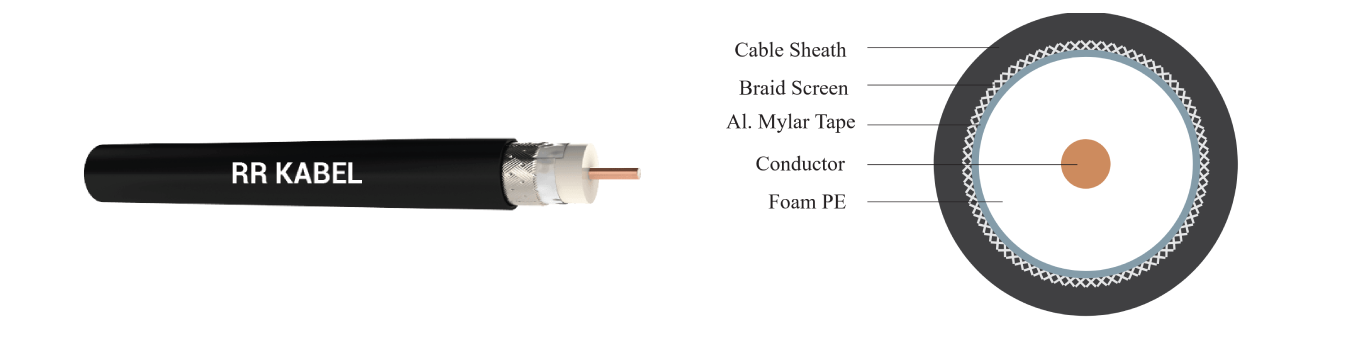

Technical Data

• Conductor: The central conductor is made of solid electrolytic grade annealed plain copper conductor, which has distinct advantages over traditional copper conductor

• Insulation: The insulation provided over the conductor is of foam PE

• Screen: Aluminium mylar tape is provided over the insulated conductor to shield the conductor and ensures disturbance free transmission of signals

• Braiding: The braiding is generally provided with 60% coverage of ATC (Annealed Tinned Copper) / Al alloy

• Jacket: Specially formulated PVC, for rugged outdoor usage.

• Marking: The cables are marked ‘RATNA CO-X’

Cable Design Parameters

• RG 6 F is also available with CCS conductor and the applicable Part number shall be 010501040791.

• RG 6 F armoured is also available with CCS conductor and the applicable Part number shall be 010501080791.
