Electron Beam Cross-linked | HFFR (Halogen Free Flame Retardant) insulation | Non-Toxic & Non-Corrosive | Does not melt up to 900ᵒC

Application

Firex LS0H-EBXL is designed for critical circuits in environments where enhanced fire safety, low smoke and zero halogen emissions are essential. It is best suited for high-traffic public and commercial spaces such as airports, auditoriums, hospitals, hotels, schools, malls, and retail outlets. Its high-performance insulation, durability, and reliability make it an ideal choice for modern infrastructure with demanding safety and longevity expectations, including high-rise and densely occupied establishments.

Statutory Requirements:

The Central Electricity Authority (CEA) Regulation 2023 has made it mandatory to use Halogen Free Flame Retardant cables in public infrastructures (airports, hospitals, hotels) irrespective of height.

Technical Data

• Approvals: IS 17048 marked, FIA/TAC

• Cable Code: XZ

• Voltage Grade: Up to and including 1100V

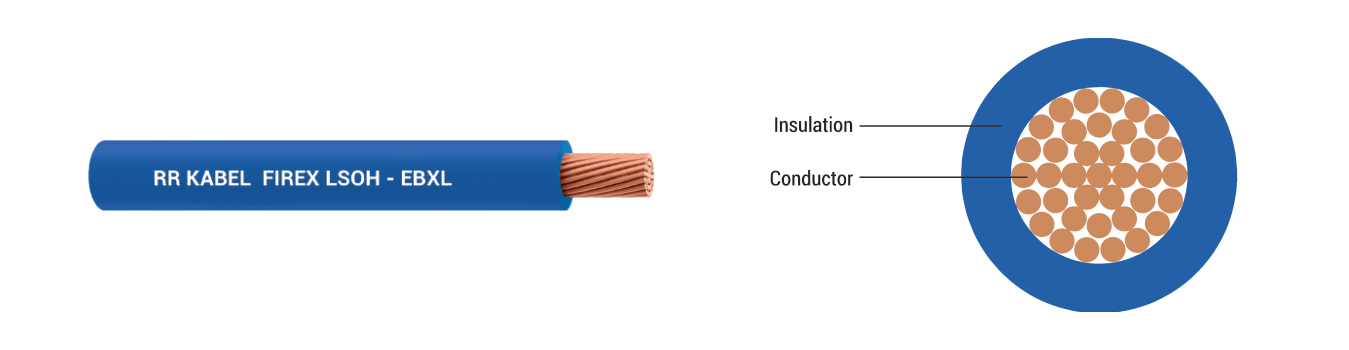

• Conductor: Strands of electrolytic annealed plain copper are multi-drawn for uniformity of resistance, dimension and flexibility.

• Insulation: E-Beam Crosslinked HFI-XL 90 Halogen Free Flame Retardant (HFFR)

• Colours: Green, Black, Red, Yellow, Blue, Grey, White

• Marking: The cables are marked 'FIREX LS0H-EBXL'

• Packing: 90 meter coils packed in protective cartons.

Properties

• It does not melt up to 900°C

• Temperature range: -25°C to +110°C

• Max. short circuit temperature rating: 300°C

• Chlorine Free: Non-toxic & Non-corrosive

• Smoke emission is negligible & transparent

• Excellent water resistance properties

• Abrasion resistant

• Weather resistant

• Anti-Rodent & Anti-Termite

• Offers extented service life

• The victims trapped in fire do not suffocate and this facilitate fire fighting operations.

• Self-extinguishing and flame retardant according to IS 10810 P – 61

Cable Design Parameters

Kindly complete the part numbers for these cables by adding the suffix (in place of ‘xx’) for the colour required 01 – Green, 02 – Black, 03 – Red, 04 – Blue, 05 – Yellow, 06 – Grey, 07 – White

• *As per IS 3961 (Part V)

• ** As per conductor Class 5 of IS 8130

Test Parameters for Assessment of Halogen

*Construction Product Regulation (CPR) is a regulation issued by the European Union with the purpose of regulating the limits of fire resistance and dangerous substances in the materials used in construction. This regulation applies to all products intended to be incorporated, permanently, in construction. Above link provides the DOP (declaration of performance) for the CPR compliance for the product.
