Application

These cables are designed for residential and commercial infrastructure. They serve as the connecting medium in power and control panels, cabinets & switchgears. They can also used for the purposes such as stationary and static appliances, motors and for other single phase connections.

Available in various types:

• Ratnaflex -M : HR PVC insulated & sheathed multicore cales suitable for higher operating temperature of 70°C

• Ratnaflex -M FR : Flame Retardant (FR) multicore cable enhances safety and are suitable for max. operating temperature 70°C

• Ratnaflex -M HRFR : Heat Resistant (HR) & Flame Retardant (FR) multicore cables are suitable for higher operating temperature up to 85°C with enhanced safety.

• Ratnaflex -M FR-LSH : Flame Retardant Low Smoke Low Halogen (FR-LSH) cables are suitable for wiring in public places like schools, hospitals, theatres, etc.

Technical Data

• Approvals : IS 694 marked, FIA/TAC

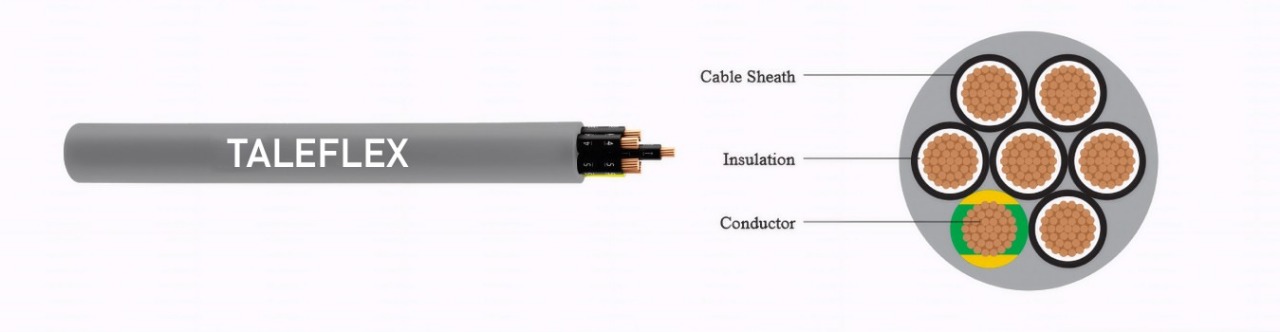

• Conductor : Electrolytic grade annealed copper Class-5 as per IS 8130, having uniform resistance properties

• Core Colours : All black colour cores with continous white numbering, gn-yl core on outer most layer for earth if applicable

• Standard Cable Colour : Black (RAL 9005) & Grey (RAL 7001)

• Voltage : Up to and including 1100V

• Packing : Standard packing of 100 mtr. in coils. Longer length available on request
